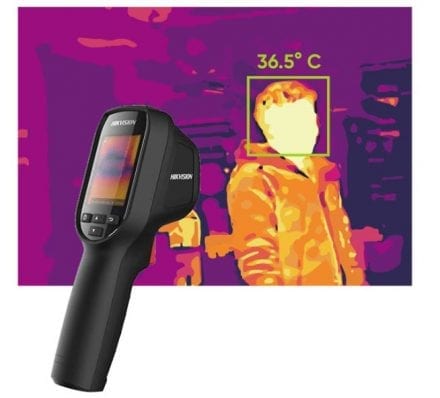

Fever Screening Handheld Camera

The handheld thermal camera, specially designed for body temperature measurement. It’s equipped with a
160×120 resolution thermal detector. It helps to quickly detect fever

Key Features

  • 160 × 120 resolution
  • Thermographic accuracy up to ±0.5 °C
  • 320 × 240 resolution 2.4’’ LCD display
  • Built-in rechargeable Li-ion battery
  • Up to 8 hours continuous running

Functions
Thermography
Device detects the real-time temperature, and display it on the screen.
Storage
Device is equipped with replaceable memory card to store recorded captured snapshots, and important data.
Palette
Device supports 4 palettes.



Key Features

Thermal imaging function:

  • Resolution 384 × 288, high sensitivity detector
  • Highest temperature cross cursor positioning
  • Supports point, line, rectangle, and irregular area temperature measurement modes
  • Support human body temperature abnormal alarm function
  • Support automatic capture of moving face targets
  • Support wearing a mask to identify the face area to avoid false alarms from non-face high temperature objects

Visible light phase function:

  • 500W high-definition visible light detector
  • Supports automatic exposure control and automatic white balance
  • Supports face temperature measurement mode, intelligently analyzes face targets and measures body temperature, supports multiple alarm linkages
  • Dual light temperature measurement linkage, can draw regular and superimposed temperature measurement information on visible light image



More information

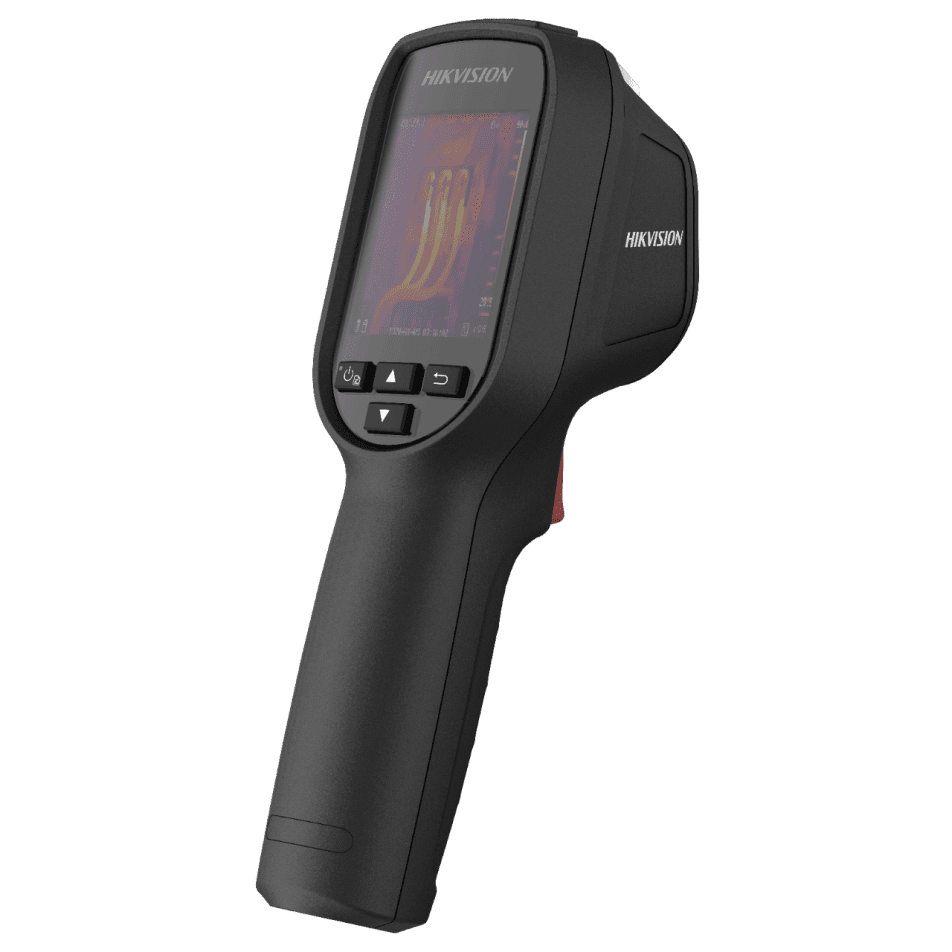

The Hikvision DS-2TP21B-6AVF/W handheld thermal camera is specially designed for body temperature measurement. It’s equipped with a 160×120 resolution thermal detector. It is capable of discovering and tracking people with elevated body temperatures in crowded public areas and can be widely used in places such as customs, airport, schools, and hospitals for inspection and quarantine.

• 160 × 120 Resolution (Thermal), and 8 MP
Resolution (Optical)
• Thermographic Accuracy up to ±0.9° F (±0.5° C)
• Display Fusion of Thermal View and Optical View
• 640 × 480 Resolution 3.5” LCD Touch Display
• Supports Live View on PC, Mobile Device, or
External Monitor
• Supports Audio Intercom
• Supports Color Highlight Alarm and Audio Alarm
